BMC/SMC raw material uses Alita’s unsaturated polyester resin.

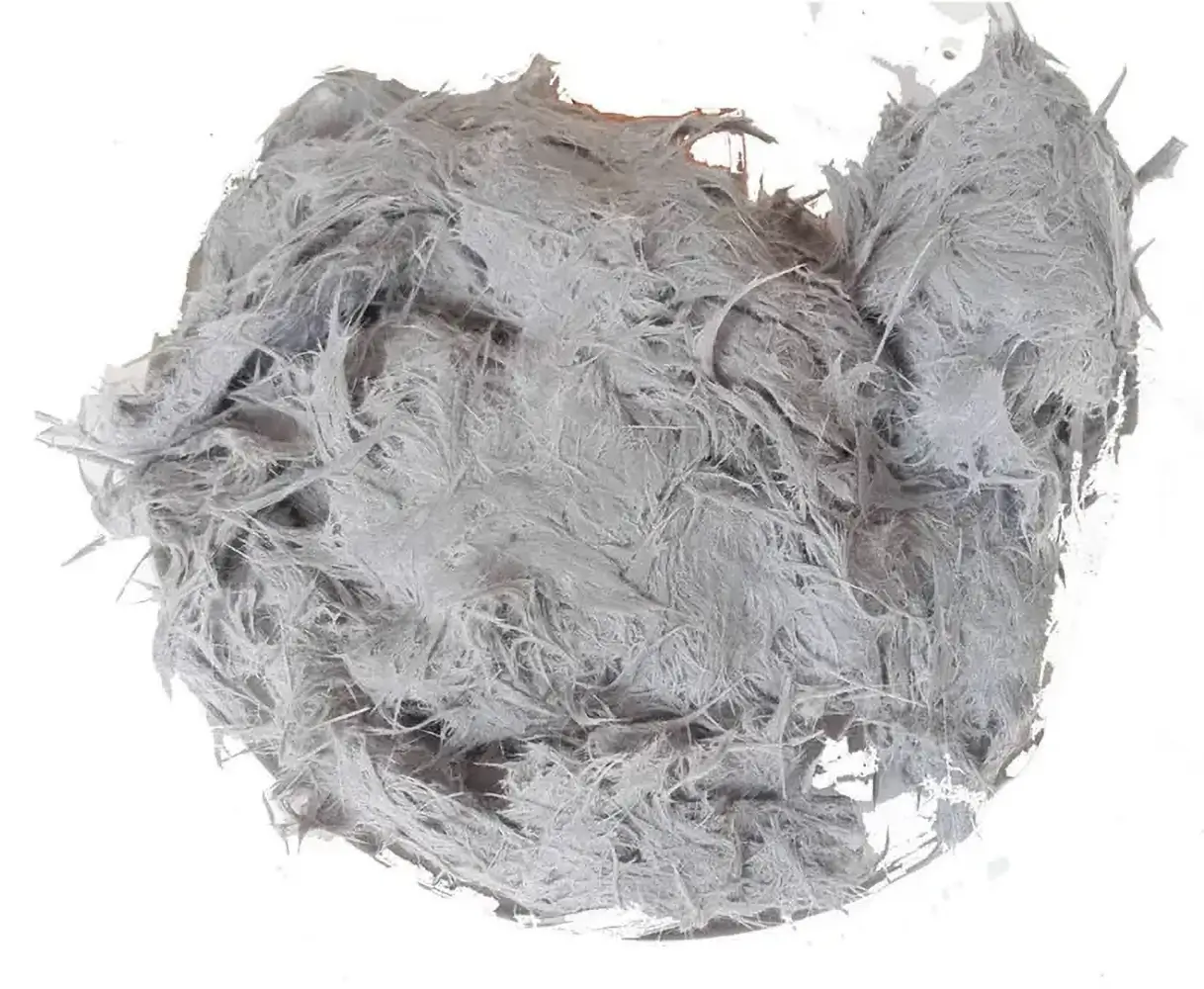

Bulk Molding Compounds (BMC) and Sheet Molding Compounds (SMC) are both fiber reinforced materials, typically utilizing glass strand fibers of varying lengths. SMC uses slightly longer length fibers than BMC, and typically has a higher percentage of reinforcement fibers than BMC. Fiber Lengths range from 1/32-inch in BMC up to 1-inch in some SMC’s, resulting in various strength characteristics which can be customized for individual needs.
Bulk Molding Compounds (BMC) and Sheet Molding Compounds (SMC) are both fiber reinforced materials, typically utilizing glass strand fibers of varying lengths. SMC uses slightly longer length fibers than BMC, and typically has a higher percentage of reinforcement fibers than BMC. Fiber Lengths range from 1/32-inch in BMC up to 1-inch in some SMC’s, resulting in various strength characteristics which can be customized for individual needs.
| Material Performance | Material Description | SMC Series Number | BMC Series Number |
|---|---|---|---|
| General Purpose | General purpose composite materials with a wide range of applications. Suitable applications are typically structural in nature with no flammability requirements. | S100 | B100 |
| Heat and Corrosion Resistant | Composite materials intended for use in sanitary, cookware, appliance and indirect food contact applications. | S200 | B200 |
| Low Shrink Materials | Low shrink composite materials. Well suited for applications requiring shrink < 0.1%. | S300 | B300 |
| UV Stable | These materials are suitable for use in applications requiring superior colorfastness & physical property retention upon exposure to UV and visible light. | S610 | B610 |
| Low Flame & Smoke Toxicity | These materials provide low flame & smoke toxicity in accordance with ASTM E162 and E662 standards. | S620 | |
| Corrosion Resistant | These composites are typically unsaturated polyester or epoxy vinyl ester materials formulated to meet the strict performance requirements of pumps, pipe flanges & underground applications that are impacted by corrosive environments. | S800 | B800 |
| Dielectric & Flame Resistant | Suitable for electrical applications requiring a composite material that possesses a UL Yellow card and flammability performance from UL94 HB, V-0 & 5VA. These materials can be found in Underwriters Laboratory file E53587. | E200 Series | 400 Series |
| Electrical Insulators & Flame Resistant | These high strength Rosite BMC composites are suitable for use in electrical applications requiring materials that possesses dielectric properties and flammability performance from UL94 HB, V-0 & 5VA. | 1000 Series | 3000 Series |
| Flame Resistant & Low Smoke Toxicity | This composite is certified as a low smoke toxicity material with a UL94 V-0 flame rating. It’s physical characteristics have been certified to meet several US Municipal Transit Authority specifications. | 3100 |
